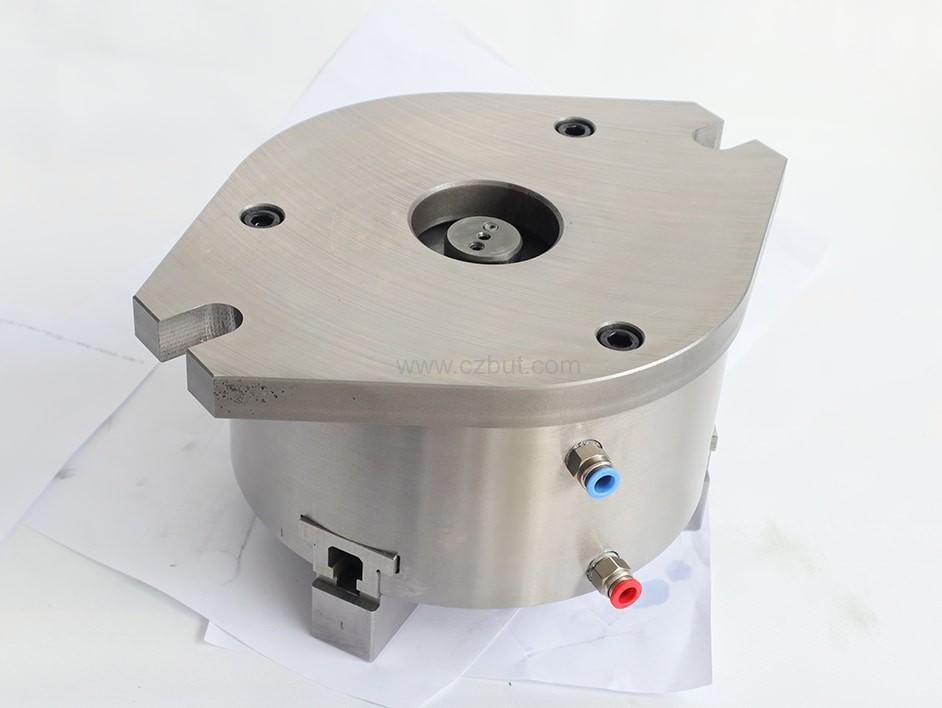

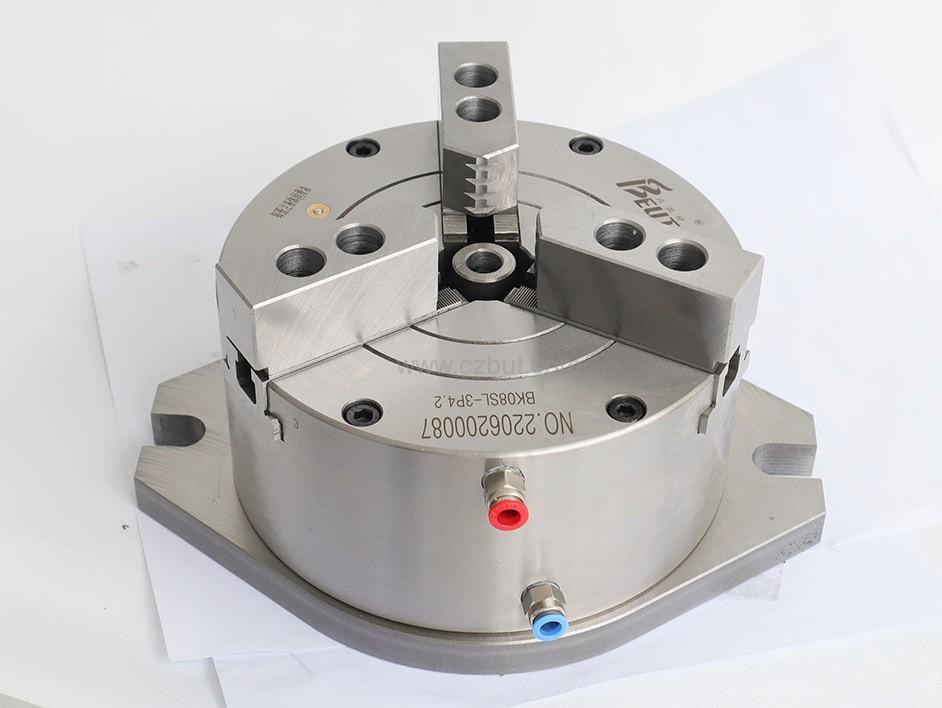

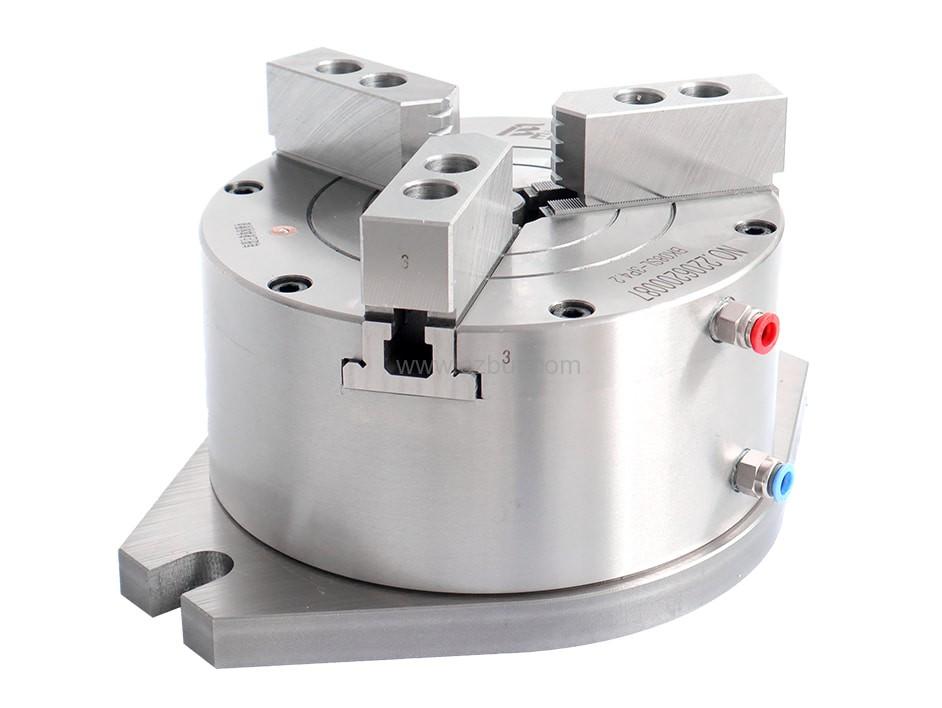

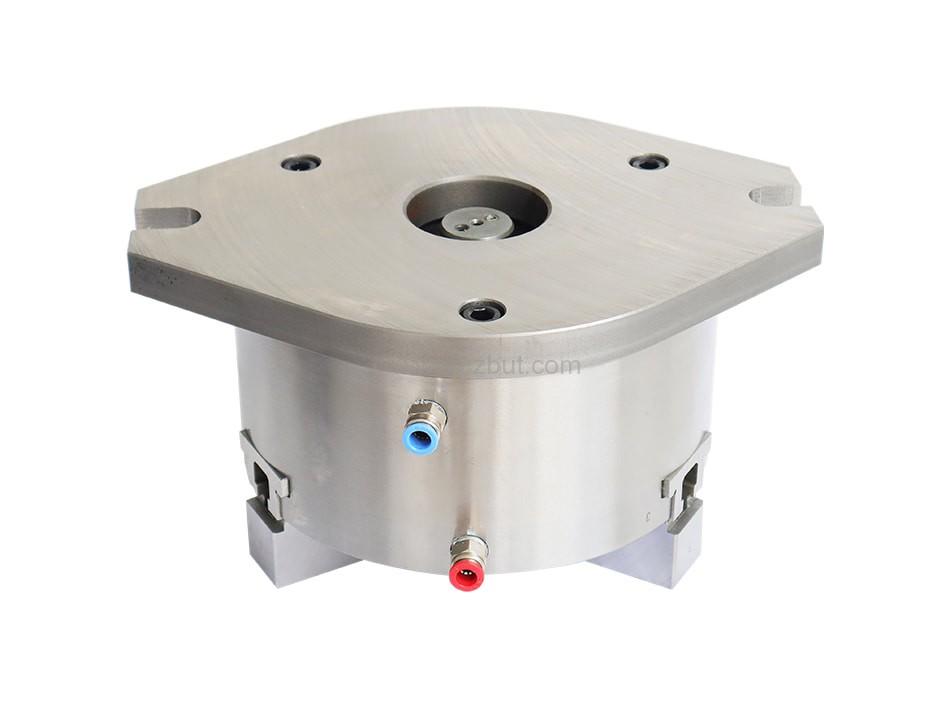

性能参数 / Performance
| 规格 Specifications | 爪行程t(直径) Jaw stroke t (Diameter) | 最大夹紧力kN Max.gripping force (kN) | 最大撑紧力kN Max.bracing force (kN) | 许用压力Mpa Allowable pressure (Mpa) | 夹紧范围 Clamping range | 撑紧范围 Bracing range | 净重kg Net weight (kg) |
| BK110SL | 3.7 | 14 | 7.4 | 0.4~0.8 | 2-115 | 15-120 | 8.2 |
| BK130SL | 3.2 | 21.2 | 11.5 | 0.4～0.8 | 2-130 | 20-140 | 12 |
| BK160SL | 3.7 | 36.5 | 19.3 | 0.4～0.8 | 2-170 | 20-180 | 17.6 |
| BK200SL | 4.2 | 53.8 | 30.7 | 0.4~0.8 | 5-210 | 20-240 | 27.6 |
| BK250SL | 4.8 | 73.2 | 46.9 | 0.4~0.8 | 10-260 | 30-280 | 40 |
| BK320SL | 8.5 | 116.6 | 78.3 | 0.4~0.8 | 10-350 | 40-360 | 81 |
| BK400SL | 11.5 | 158.2 | 102.9 | 0.4~0.8 | 15-420 | 50-430 | 160 |

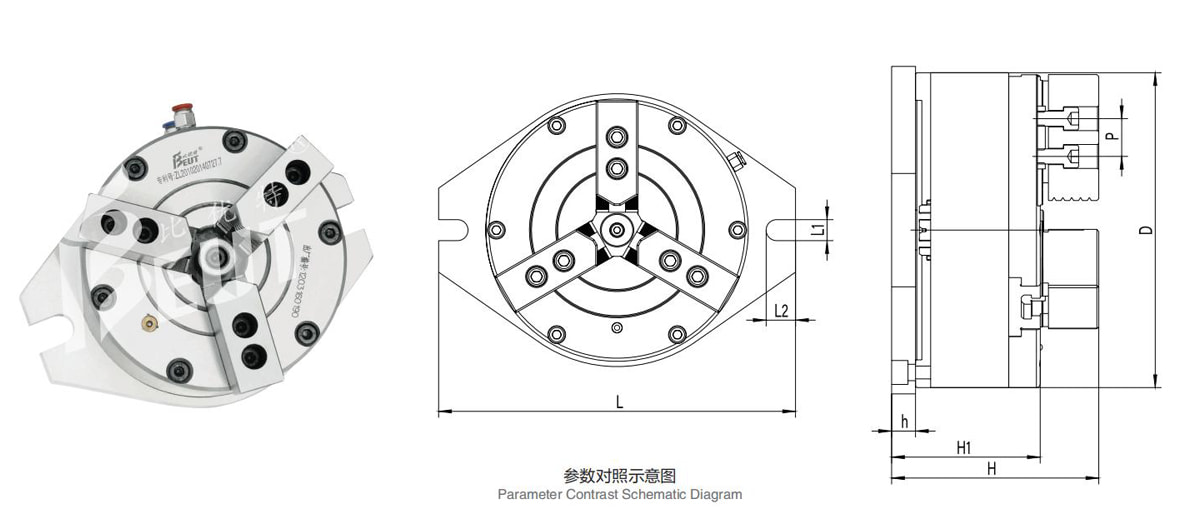

尺寸参数 / Dimensions
| 规格 Specifications | D | L | L1 | L2 | H | H1 | h | p | 动力楔块齿形 | 对应卡爪型号 |
| BK110SL | 115 | 165 | 13 | 18.5 | 125 | 100 | 19 | 16 | 1×53° | BK110Z1 |
| BK130SL | 135 | 205 | 18 | 24 | 142 | 111 | 19 | 18 | 1×53° | BK130Z1 |
| BK160SL | 172 | 238 | 20 | 28 | 148 | 112 | 19 | 20 | 1×53° | BK160Z1 |
| BK200SL | 210 | 290 | 20 | 28 | 152 | 116 | 19 | 25 | 1×53° | BK200Z1 |
| BK250SL | 250 | 340 | 20 | 28 | 164 | 118 | 19 | 30 | 1×53° | BK250Z1 |
| BK320SL | 325 | 415 | 20 | 28 | 202 | 141 | 25 | 32 | 1.5×60° | BK320Z2-60 |
| BK400SL | 400 | 500 | 20 | 28 | 242 | 171 | 30 | 40 | 1.5×60° | - |
| 注： BK400SL 以上底板外形均为圆形； 以上数据为标准参数，也可以根据客户特殊要求设计。 Note: above numbers are standard parameters. We can also design products according to clients' special requirements. | ||||||||||
常州比优特机械设备制造有限公司创立于2007年，是一家专业从事各类非标气动卡盘制造的现代技术型企业，专注车床、磨床、加工中心领域十五载，有着成熟的设计制造经验，同时为客户免费提供专业的卡盘选型指导及解决方案。
